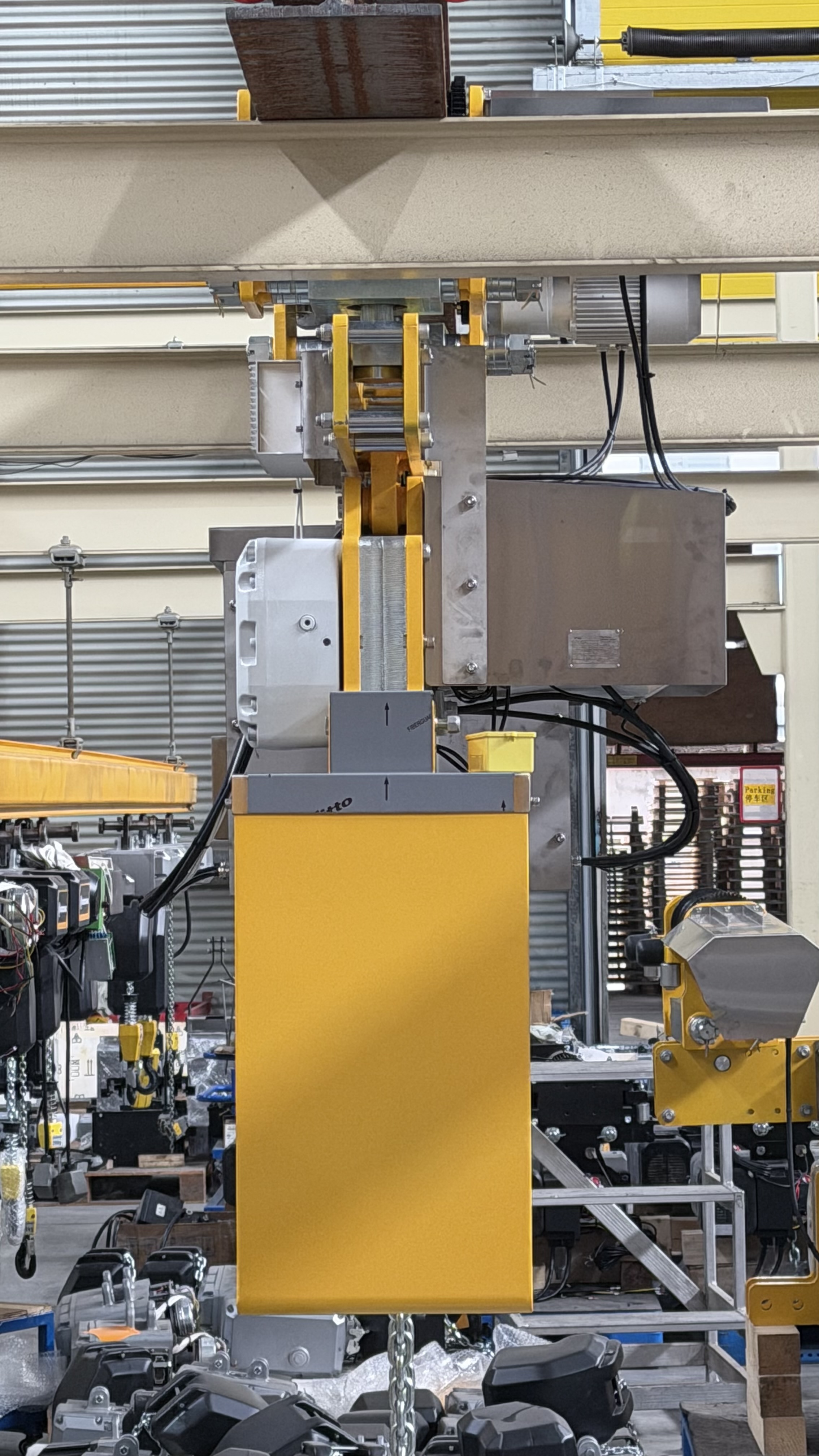

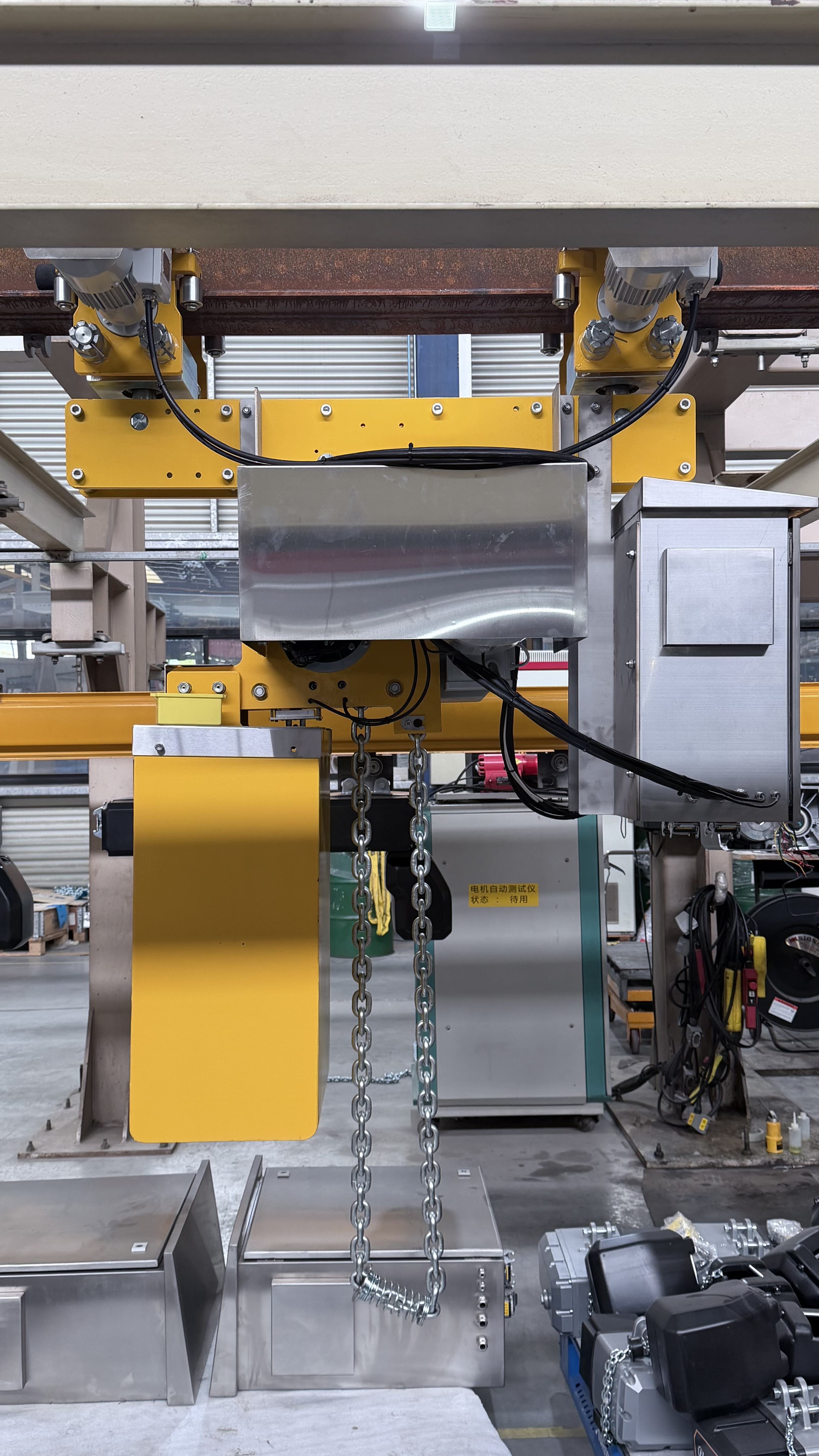

Novocrane NCH series chain hoists are specifically designed for outdoor curved rail conditions. With a rated load of 7 tons and a double-chain structure, they can meet the lifting needs of heavy materials in complex environments. Addressing the rail curvature issues encountered at customer sites, Novo NCH's R&D team specifically designed a steerable trolley structure. The wheel assembly and guiding mechanism have been optimized to ensure smooth, stable, and jam-free operation of the NCH series on curved rails, solving the problems of traditional hoists such as derailment, high wear, and poor maneuverability when operating on curved rails.

Outdoor protection upgrade: C5 level corrosion resistant

To withstand harsh outdoor environments such as prolonged exposure to wind, sun, high humidity, and salt spray, this hoist has undergone a comprehensive upgrade in its protective features. The motor is fitted with a stainless steel casing, and a stainless steel electrical box is also included. The entire machine achieves a C5 corrosion resistance rating, effectively resisting corrosion from various harsh atmospheric conditions. This significantly extends the equipment's lifespan in outdoor environments, giving users greater peace of mind when operating outdoors.

Multiple Safety Measures

In terms of safety protection, Novocrane has equipped this hoist with multiple safeguards. A mechanical lifting limit switch and an electronic contact limit switch together form a dual lifting limit protection system, preventing over-winding due to the failure of a single limit switch. In addition, the product is equipped with a lower shaft sensor electronic overload protection system, which can monitor the load status in real time. When the lifting weight exceeds the rated load, it will automatically cut off the lifting circuit and issue an alarm, preventing overload operation risks from the source. The entire machine adopts an integrated control unit, greatly simplifying internal wiring, reducing potential failure points, and making daily maintenance and repair work in outdoor environments more convenient.

Product Technical Highlights

In terms of overall design, this hoist continues Novo's minimalist design philosophy. The body adopts a fully sealed structure, offering excellent dust and water resistance, effectively preventing external dust and moisture from entering the interior. The shell uses a new type of die-cast aluminum material, ensuring both high strength and rigidity while achieving lightweight design, making installation and maintenance convenient. The core power unit uses a high-efficiency motor and transmission system, resulting in low energy consumption and high output, maintaining stable and economical operation even under long-term continuous working conditions. These design features combined significantly extend the overall service life of this NCH series chain hoist in outdoor turning conditions, while also significantly improving on-site work efficiency. From the turnable trolley structure to the stainless steel corrosion-resistant construction, to multiple safety protections and integrated convenient maintenance, Novecrane truly achieves "tailor-made for local conditions."

Novecrane consistently adheres to the philosophy of "innovation creates value," creating the most suitable and reliable lifting solutions for customers' actual working conditions.
